ENG-MERCEDES RED71| INSPIRED BY MERCEDES BENZ 300SEL AMG 6.8 SPA 1971
MB 300 SEL- 6.8 AMG 1971
MERCEDES-BENZ  W108 SPA 1971
MERCEDES-BENZ W123 RALLY
MERCEDES-BENZ SLK 320/350
AMG MERCEDES-BENZ 190E

190E EVO 2 DTM V8| 2013



SALES CENTER

DIRECT SPONSORS
SHOWS | PRESS RELEASES
CONTACTS

1967 MB 250S SPECIAL TUNING | W108 RACE PREPARED

1969 | MB 280 S 3.0 STRAIT-SIX 160HP

1969 | MB 300 SEL 6.3 V8 282 HP

1969 | MB 280 CE 2.8 STRAIT-SIX 182 HP

 ALL REDESIGNED | INSPIRED BY MB 300 SEL AMG  6.8 - MODEL SPA 1971








FOR A WORKING RACE REPLICA, YOUR DREAMS: CONSIDER US FIRST!

THE ENG RACING TEAM | USA



1969 | MB 300 SEL 6.3 V8 - 282 HP     [ART, UNIQUE MODEL]






ART, WELL CRAFTED

A Category of One

The Culture of The Classic

Timeless Styling




ENG-RED71


OUR CAR IS FROM THE SAME MB GERMANY PRODUCTION-RUN
AS THE 1969 300 SEL 6.3 MODIFIED BY AMG ENGINEERS TO 6.8 MODEL SPA-1971






UNIT #5| VIN WDB 109018-12-000349
OUR W109 CHASSIS

REDESIGNED, INSPIRED BY AMG 6.8 MODEL SPA-1971

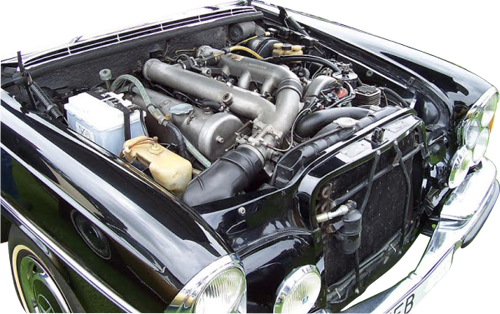

HAND-BUILT ENGINE IN GERMANY

1969 | 300SEL 6.3 LITER V8 | 282 METRIC HP

ENGINE  ADAPTATION BYERICH WAXENBERGER

1969| THE MOST POWERFUL CAR ENGINE  BY MERCEDES-BENZ.

POWERFUL 6.3L M100 V8 | 1969-1972
DAIMLER-BENZ DESIGNED FUEL INJECTION
VALVE TRAIN OHC | CYLINDER BORE 103MM
SODIUM-FILLED VALVES (AIRCRAFT MODEL)
CYL. BLOCK ON CAST IRON ALLOY
CYL. HEAD ON ALUMINUM ALLOY
POWER OUTPUT 250 PS, 180KW, 250HP @ 4000| 300 HP SAE
TORQUE OUTPUT 503Nm (371FTLM) @ 2800 RPM
12-LITRES DRY SUMP ENGINE OIL LUBRICATION (RACE CARS TYPE)

DESIGNED BY PAIL BRACQ, FREDRICH GEIGER | 1963

1969 MERCEDES-BENZ W109 300SEL 6.3L | MB Q-CAR

TOP SPEED SPEEDOMETER AT 160MPH | TOP SPEED  229KMH
ENGINE TYPE MODEL OHC M100  V8 WITH BOSCH D-JETRONIC ELECTRONIC FUEL INJECTION. PRODUCTION 1963 UNTIL 1981
DISPLACEMENT 6.3 LITERS, 6,332 CC / 386.4 CU IN.
MAX POWER 282HP (210KW) @4,250 RPM PRODUCTION 1976-1981
MAX TORQUE 550 Nm (410 LB/TF/24.5KGM) @,3,000 RPM
WEIGHT 2,140 KG (4,780 LBS) 0-100KMH IN 6.3 SECS. | ASSY.  STUTTGART, GERMANY
ECONOMY 18.3/22.7/25.9 FOR 100KM @ 90/120 KMH URBAN
TRANSMISSION 4 SPEED AUTOMATIC TRANSMISSION
BRAKES DISK BRAKES  X 4
FUEL TANK 80 LITERS 21.1 US GAL.
BODY/CHASSIS FRONT ENGINE / REAR WHEEL DRIVE
M100 ENGINE: It featured a cast iron V-8 with a single overhead camshaft operating sodium-filled valves (as are found in piston-driven aircraft) against hardened valve seats on each aluminum alloy cylinder head. Each hand-built unit was bench-tested for 265 minutes, 40 of which were under full load

 AMAZING SUCCESS| TIMELESS CHARM | SQUARE CONTOURS | RELIABLE | DURABLE | PROOF OF EXCELLENT GERMAN ENGINEERING

UNIT #5| VIN WDB 109018-12-000349 | MFD BY DAIMLER-BENZ AG. STUTTGART | READY FOR DELIVERY Q4/ 2017

PRESENTATION FOR BUSINESS UNIT #5 INSPIRED BY 300-SEL- AMG 6.9 MODEL SPA 1971 | ENG-MERCEDES RED71

BASIC MODEL STARTING AT $149.900.00

CALL

ENHANCED MODEL >

CALL

RESERVE >

$25,900

ESTIMATED DELIVERY >

Q4/2019

EXTERIOR
COLORS AVAILABLE
BLACK
BLACK-MATE
SILVER ALUMINUM
RED FERRARI
GREEN
YELLOW


PRODUCTION SCHEDULE

FOR THIS LARGE PROJECT -ALMOST UNIQUE IN USA- WE DO OFFER FINANCING, AS SCHEDULED BELOW.

FINANCING OF THE CAR PRODUCTION

ESTIMATED PRODUCTION COST U.S. $139,900.00 + $3,600 FINANCING FEES

FINANCING SCHEDULE AND  INSPECTIONS  | 10-12 MONTHS PROJECT

DOWN PAYMENT PRODUCTION PHASE 1:  BODY & ROLL CAGE + FENDERS PRODUCTION PHASE 2: ENGINE + TRANSMISSION & SUSPENSION PRODUCTION PHASE 3: PAINTING & DETAILING PRODUCTION PHASE 4: ACCESSORIES & DELIVERING
1 WEEK DURATION: 6 MONTHS DURATION: 2-3 MONTHS DURATION: 2 MONTHS 1 MONTH
$25,900 $50,900 $50,900 $12,900 $12,900


SHOWS | PRESS RELEASES | RESERVE THIS MODEL | E-MAIL

Major Modifications to the OEM 1969 MB 300 SEL 6.3L V8-282HP | W109

6.3 LITERS ENGINE CAN BE MODIFIED TO MEET AMG 6.8 LITERS. EXTRA $15,000

 4 X FRONT HEADLIGHTS  HELLA FRONT FENDER MOLDINGS REAR FENDERS MOLDINGS RACE FUEL SYSTEM TANK
12V ELECTRICAL SYSTEM REMOVING FRONT BUMPER REMOVING REAR BUMPER PROF. RACE CAGE 2"
REAR BATTERY COMP. PILOT, COPILOT FRONT RACE SEATS 3" RED 5-POINTS RACE BELTS STEERING WHEEL ADAPTER
BOSCH IGNITION SYSTEM NEW ENGINE AIR INTAKE NEW EXHAUST DUAL PIPE FERRARI-RED EXTERIOR PAINT
SPECIAL V8 ENGINE TUNING 2' AND 2.5" WHEEL HUB ADAPTERS BRAKES PADS AND ROTORS INTERNAL WOOD PANELS
ENGINE HOOD TREATMENT ALL ENGINE/TRANSM. FLUIDS - NEW GERMAN ENGINE OIL - FUCHS SYNTHETIC GREASE SERVICE
NEW WINDSHIELD WHETHER STRIPS NEW REAR GLASS WHETHER STRIP NEW DOOR WHETHER STRIPS NEW TRUNK WHETHER STRIP
RACING STYLE PLATE LIGHTS FRONT OEM RONAL RIMS*  R16 X 8" REAR OEM RONAL RIMS* R16 X 10" NEW BLACK CARPETING

HOOSIER RACING TIRES FRONT

P245/45ZR-16 NEW MODEL R7 | 9.5" P275/45ZR-16 NEW MODEL R7| 10.3"

HOOSIER RACING TIRES REAR

RACE TYPE ELECTRICAL SWITCHES 5-LBS FIRE EXTINGUISHER 3-SPOKE RONAL-TYPE STEERING WHEEL DUAL RED AND BLACK CARPETS
FRONT FENDERS MOLDINGS 290 WELDING-POINTS EACH REAR FENDERS MOLDINGS 560 WELDING-POINTS EACH


*5-SPOKE ALL ALUMINUM RONAL WERE THE ORIGINAL RIMS OF THE MB 300 SEL AMG 6.8 AT SPA, 1971 | TYPE C111

ALLOCATED 1,000 HOURS

MANY PROFESSIONALS WORKED ON THIS COMPLEX PROJECT

THANK-YOU LIST



WE DO APPRECIATE YOUR FEED BACK AND PATRONAGE IN THE FORM OF INFORMATION, CONSULTING, PICTURES, IDEAS, SPONSORSHIP.

HEDI ENGHELBERG

MECHANICAL ENGINEER, PRESIDENT/CEO



  THE HISTORY OF THE RECOVERY MERCEDES-BENZ 300SEL 6.3 1969
DAY 1 PURCHASE SCOUT BRINGS THE CAR FOR SALE. CAR PAID
DAY 15 TRANSPORTER INFORMED AND THE CAR IS PICKED UP IN BOSTON, FOR HAULING TO FORT LAUDERDALE.
DAY 20 TRANSPORTED DELIVERS THE CAR IN FORT LAUDERDALE. THEN THE CAR IS TRANSPORTED TO DAVIE, FL.
DAY 30 CAR REGISTERED IN FLORIDA. NEW TITLE. VIN WDB-109-01812-00349
DAY 157 CAR ENTERS H11 CLASSIC SPEED / ENG GROUP RACING SHOP FOR 100% RECOVERY AND REDESIGN AS 300SEL MODEL SPA 1971
DAY 158 SPARK PLUGS TAKEN OUT, MIRACLE OIL TREATMENT FOR THE 8 PISTONS. NEW SPARK PLUGS AND SPARK CABLES ORDERED.
DAY 165 INTERSTATE 100 AMPS BATTERY INSTALLED. ENGINE TURNS FREE.
DAY 175 CAR INSTALLED ON JACKS STANDS, WHEELS TAKEN OFF, INSPECTION OF THE UNDER CARRIAGE, WHEELS HUBS, DISK, CALIPERS, HOSES.
DAY 176 SPARK PLUGS INSTALLED. TANK, FUEL PUMP, FUEL LINES DRAINED AND CLEANED. ELECTRICAL LINES TO PUMP CHECKED. NEW FUEL FILTER
DAY 180 RADIATOR DRAINED AND FLUSHED, NEW FUCHS COOLING MAINTAIN FRICOFIN INSTALLED, OVER MB SPECKS.
DAY 182 ENGINE OIL PAN (ENGINE CARTER) REMOVED, CLEANED. OIL PUMP CLEANED, NEW OIL PAN GASKET INSTALLED.
DAY 184 ENGINE AIR FILTER CLEANED AND REPLACED.  INTAKE CLEANED. THROTTLE CABLES AND  MECHANISM GREASED AND CHECKED.
DAY 186 NEW ENGINE OIL FILTER. 15W40 FUCHS TITAN HD  ENGINE OIL, 20 LITERS IN.
DAY 187 TRANSMISSION FLUSHED. NEW FILTER AND TRANS. SEAL. FUCHS ATF 4134 IN, 12 LITERS.
DAY 190 TRANSMISSION BELTS CHECKED AND REPLACED. HYDRAULIC FLUID REPLACED WITH FUCHS TITAN PS, NEW STEERING PUMP FILTER INSTALLED.
DAY 195 COILED CHECK. DISTRIBUTOR CHECK. OIL LEVEL CHECK. FUEL PUMP CHECK. ENGINE STARTED. ENGINE WORKS PERFECTLY. 20 MINS TEST.
DAY 200 120 MINS. ENGINE RUNS WITH THE TRANSMISSION ENGAGED IN DRIVE. NO PROBLEMS.
DAY 201 NEW ENGINE OIL FILTER AND NEW 20 LITERS FUCHS TITAN HD OIL INSTALLED.
DAY 251 ENGINE STARTED. ENGINE WORKS OK.
DAY 297 CAR IS OFFERED BUYER FINANCING OF CAR PRODUCTION



SPONSORS

ESTIMATED PRODUCTION COST U.S. $149,900.00









DISCLAIMER

_____________ 1969 MERCEDES-BENZ 300 SEL 6.3L V8 282HP W109 | ENG-RED71 _____________

WE HAVE THE ORIGINAL 1969 V8 6.3L ENGINE (UPGRADED BY AMG TO 6.8L IN 1971)

DISCLAIMER | NOTE TO BUYERS

BUYERS GUIDE:  •ANTIQUE / CLASSIC CAR, •AS IS - NO DEALER WARRANTY: THE DEALER DOES NOT PROVIDE ANY WARRANTY FOR ANY REPAIRS AFTER SALE ] •SERVICE CONTRACT: A service contract on this vehicle is available for an extra charge. Shipping, transportation, preparation for export; delivery documents: are available, upon request and extra payment.

NOTE TO BUYER | WAIVER | COVERAGE | This is a classic, used, restored vehicle. This vehicle is a used, restoration piece. Given the age of the vehicle, the owner must drive it with care and not to abuse it. This vehicle is being restored with Mercedes-Benz and other German quality aftermarket parts, as they are available, given limited availability since 1967. We offer no warranty for this vehicle. This vehicle is sold {AS IS / NO WARRANTY} {WHERE IT IS}. The car is being sold “AS IS". The term refers to a vehicle's warranty status. A car being sold “as is" is being sold without a warranty. That means that any problem with the car is no longer the responsibility of the dealer or private seller once it has been sold. The seller will not be held responsible for any problems or needed repairs after the sale.The (this) sale is final.  The new owner is responsible for the vehicle, as purchased. The seller has no legal obligation to take the car back. Car buyer's remorse is not offered. The buyer waived (gave up) all warranties. The car is sold "as is," and the buyer gave up the implied warranty of merchantability. You and the seller have expressly negotiated the waiver and reached an agreement that your car does not come with an implied warranty. It is the buyer’s responsibility to check out the car before agreeing to buy it. Car title registration must be transfer on the buyer’s name (purchaser) (once paid in full) prior to take physical possession of the car. The purchaser must make application for anew certificate of title AND FILE IT IMMEDIATELY.

DISCLAIMER | THE CONSTRUCTION OF THIS VEHICLE AND ITS REDESIGN THIS IS A PRIVATE ENTERPRISE. WE DO NOT ALTER THE SECURITY SYSTEMS OF THE ORIGINAL CAR, AS BUILT AT THE TIME OF MANUFACTURE AND DELIVERY IN USA; WE JUST ENHANCE THE DESIGN OF THE VEHICLE WITH PROFESSIONAL ADDS-ON. ALL CARS ARE SOLD {AS-IS] AND [WHERE THEY ARE]. WE DO NOT EXTEND ANY WARRANTY, BESIDE THE INTRINSIC WARRANTY OF THE NEW PARTS WE INSTALL, RIMS, TIRES AND 12 MONTH WARRANTY ON THE BODY WORK AND PAINT. WE ARE BUILDING A WORKING-RUNNING REPLICA INSPIRED BY FAMOUS RACE CARS.  ALL MERCEDES-BENZ CARS ARE ORIGINAL, ANTIQUES, VINTAGE AND MANUFACTURED AND MADE BY DAIMLER-BENZ AG. STUTTGART |  MADE IN GERMANY | ALL ADDITIONAL WORK, DESIGN, MOLDING, ENGINE /TRANSMISSION REPAIR, MAINTENANCE AND TUNING, INSTALLATION, SERVICE AND ENHANCEMENTS ARE DONE BY USA-ATE AND/OR MERCEDES-BENZ-AMG CERTIFIED TECHNICIANS AND CRAFTSMEN IN FORT LAUDERDALE, FLORIDA, USA.
